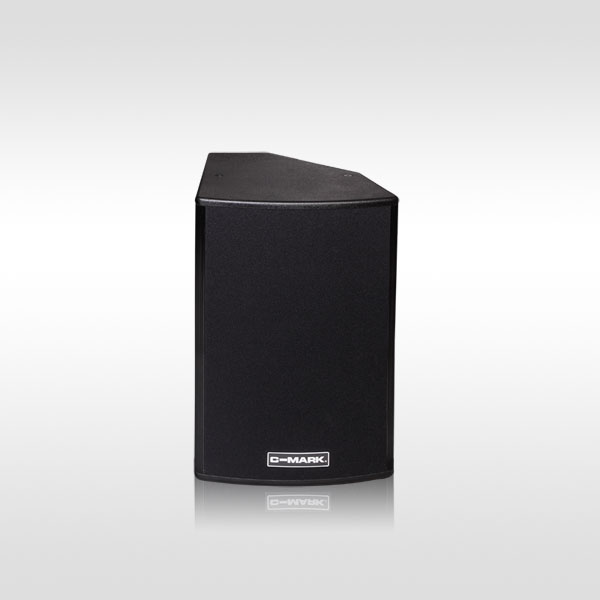

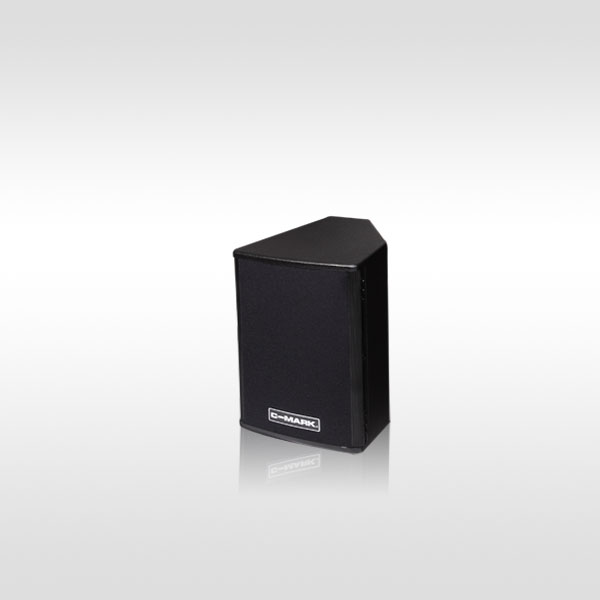

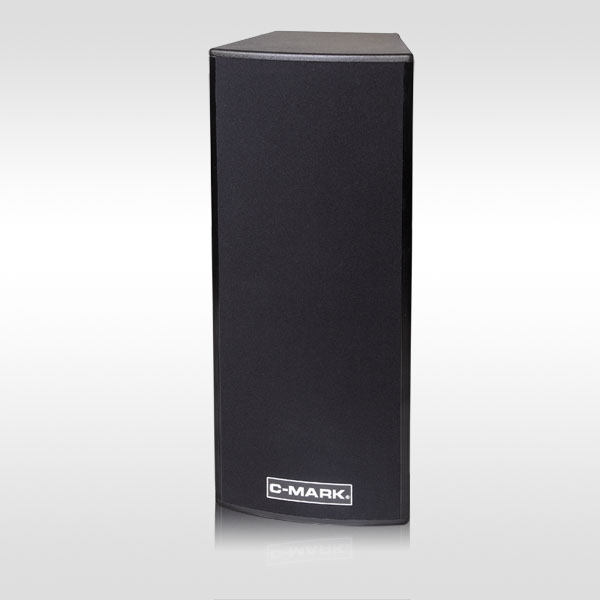

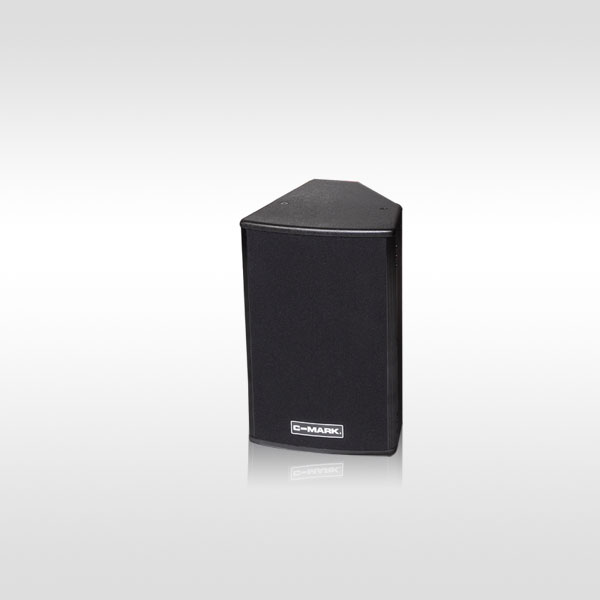

With the constant pursuit to meet market demand in current economic environment, C-Mark has latestly released its KT series loudspeakers, which has high definition drivers, beautiful appearance and great performance. There are four full-range configurations: 10”, 12”, 15” and 2 x 15”. It can be applied in various venues where large SPL is required, such as conference room, teaching room, muilt-functional hall, etc.
It features:
1. elaborately design to ensure beautiful appearance and great performance.
2. HF: adopts a horn of wide dispersion angle and the diaphragm made of PET Polymeric materials, sound clear and soft.
3. LF: adopts qualified voice coil withstanding high temperature and unique cooling design, very stable performance.
4. HF feedback protection technology is applied in crossover circuit to protect the speaker and ensures its stability and reliability.
5. Convenient flying-up design suitable for a variety of suspension ways, very easy to fix on the wall and the ceiling, and speaker angles can be adjusted in full range.
Specification:
photo |
|
|
|
| |
model | KT210 | KT212 | KT215 | KT3215 | |
component | LF | LO1050PK | LO1264 | LO1575X | LO1575X*2 |
HF | HI25M*2 | HI34N | HI34N | HI44N | |
rating power (W Rms) | 150 | 250 | 350 | 600 | |
max power (W Rms) | 300 | 500 | 700 | 1200 | |
frequency Response | 45Hz～18KHz(±6dB) | 55Hz～18KHz(±6dB) | 50Hz～18KHz(±6dB) | 45Hz～18KHz(±6dB) | |
inpedence (Ω) | 8 | 8 | 8 | 4 | |
sensitivity (1m/1w) | 93dB | 97dB | 98dB | 100dB | |
SPL (dB) | 115(1m) | 123(1m) | 126(1m) | 129(1m) | |
radiation angle | H150°V150° | H120°V90° | H120°V90° | H120°V90° | |

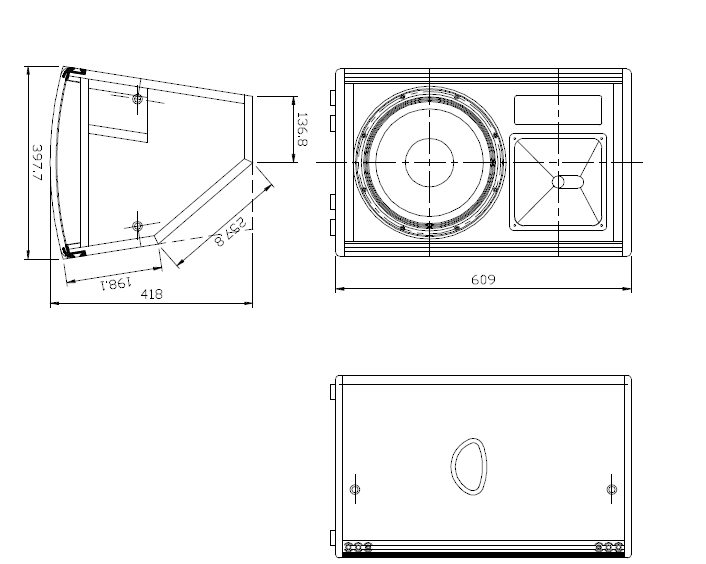

demension (mm) | (226.3+337.9)* 368.2*519 | (274.9+397.7)* 418*609 | (314.7+456.3)* 487.8*718 | (314.7+452.1)* 487.8*1140 | |
